How to use QML form in QGIS V3.x

Figure 1: Final QML form

An introduction to Qt Markup Language (QML) for form design in QGIS versions 3.4 and above.

"QML is a user interface markup language. It is a declarative language for designing user interface–centric applications. Inline JavaScript code handles imperative aspects. It is associated with Qt Quick, the UI creation kit originally developed by Nokia within the Qt framework." - Wikipedia

QML forms were introduced in later version of QGIS 2.x branches (See here)

QML forms are fully functinal in QGIS 3.x branches.

Objective

This tutorial is an introduction to QML form design to display information about a clicked feature in QGIS.

QML forms are used to produce nice looking information forms that are used by end-users, see image on the right (note background effect when mouse is over a field).

As a by-product we will also show how to establish one-to-many relations between tables.

1 - What is needed?

In order to follow this tutorial you will need the following:

QGIS ≥3.4
Spreadsheet Layers plugin
data: in this case, a simple spreadsheet

The final project can be downloaded from here, if you do not want to work with your own data.

2 - Data

Who has painted that town?

In order to illustrate this tutorial let's say we have been tasked to show on a map a list of towns that have been painted by various artists. This means that each town location will link to one or more artists. Furthermore we have an aerial photo of the town and a link to that town information that we want to show the user, and, for each artist we have an image of his/her painting and a link to his/her bio.

Data

For simplicity, all data is stored in a spreadsheet file having three tabs:

town: with fields: id, location, name, image (aerial photo) and link (to info about town):

Saint Paul de Vence, France
Venice, Italy

author: with fields: id, name and link to artist's web page:

Claude Monet
Canaletto
Guido Borelli
Marilyn Dunlap
Pierre Auguste Renoir

lkup: lookup table to establish the one-to-many relation between town and author tables, having fields: IDC (the town's id), IDA (the author's id) and image

3 - Set-up GIS project

Open QGIS
Add the "Spreadsheet Layer" plugin

Figure 2: Add "Spreadsheet Layers" plugin

Import Google satellite layer (see here for a How-To)
Import town table using "Spreadsheet Layer"

Frame3
Figure 3: Add spreadsheet layer

Figure 4: Form used to load each sheet into a layer from spreadsheet

Import author table, same as above but do not check Geometry and instead of Sheet: town, select author
Import lkup table, same as above but do not check Geometry and instead of Sheet: town, select lkup
Style town layer to display a big circle with labels

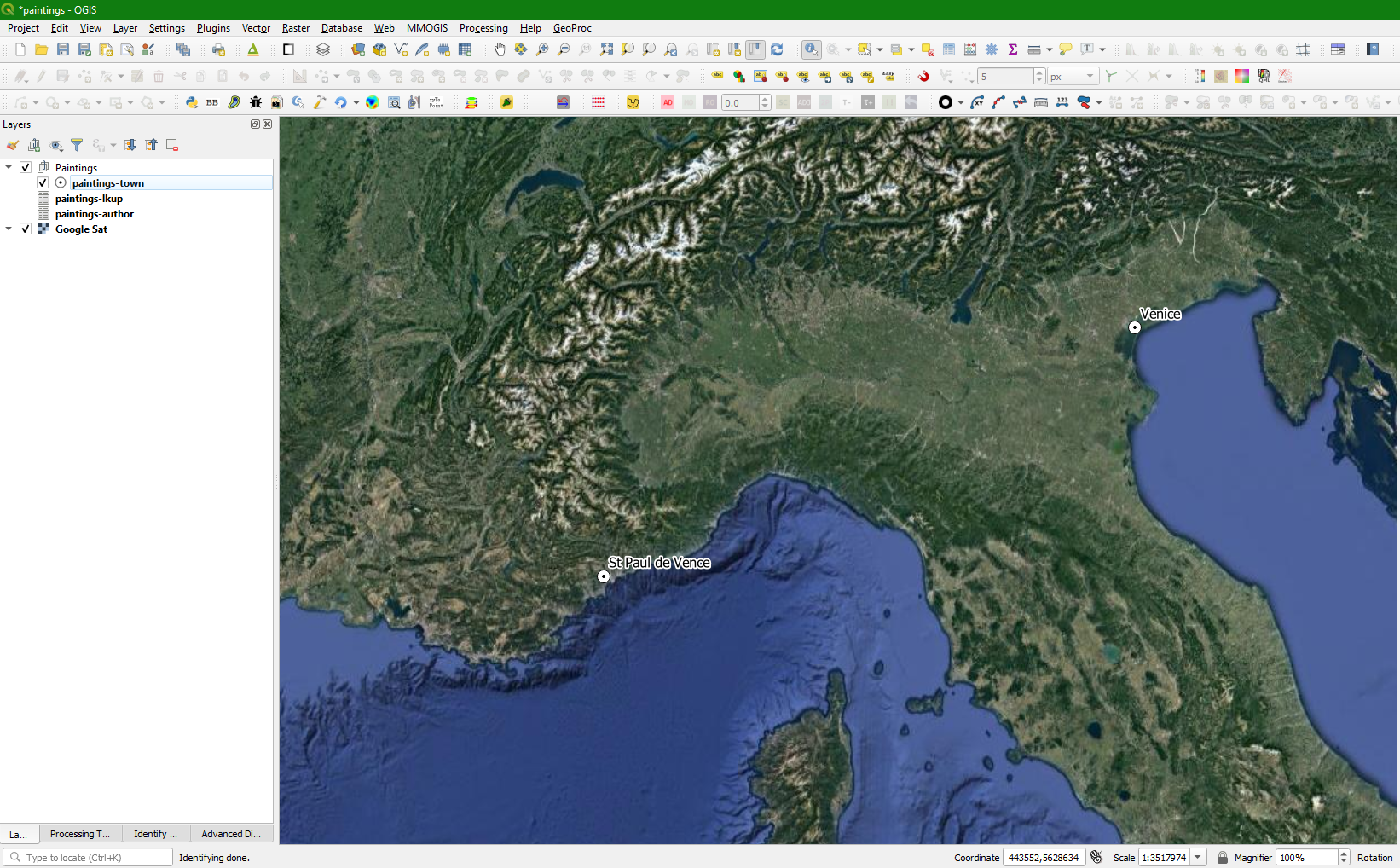

Figure 5: Styled town layer

In this order:

Set-up relations between lkup and author tables. Open lkup properties -> Joins -> +:

Figure 6: Relation between lkup and author tables

Set-up relation between town layer and lkup table. Project -> Properties -> Relations -> Add relation:

Figure 7: Relation between town layer and lkup table

Test relations with "Identify Features" tool. Select "Identify Features" and click on one of the towns in QGIS canvas.

Figure 8: Default Feature Attributes form

The default form format is plain boring, it shows the one-to-many relation. But user has to click an id to open more info in the PAINT pane.

Let's improve with QML... What about displaying images and creating links?

4 - Introduction to QML form design

QML is made of imbricated objects that interact with each other and with the user.

Accessing QML from QGIS

Open town layer properties (right-click on the layer name and select Properties)
Click Attributes Form tab
Select Drag and drop designer
Drag "QML Widget" from Available Widgets pane to Form Layout pane

Frame9
Figure 9: Drag and drop designer mode

Configure QML Widget window opens

Figure 10: QML design form

Four our purpose, designing a QML form has two parts:
- Show data from town table
- Show relation data from author table: many entries from that table are linked to one entry in town table, as seen in figure 8.
Set a Title: put some meaningful text: e.g. Painted towns
Then use a text editor to create the QML code needed to display the QML form. Using the provided text box is painfully useless because it cannot be resized vertically or horizontally on Windows machines, at least.

In your favourite text editor:

First the compulsory import

import QtQuick 2.0

This is the library containing all the necessary QtQuick objects used by QML.

Define the top level object: a Rectangle

Rectangle {
    id: theRect
    width: 400; height: 2000
    ...
}

Note: Commands can be on the same line, in that case use ; to separate them. If one command per line then no need to end the line with ;

Inside that rectangle the other objects will be layout in a single column, one object below its previous sibling

Rectangle {
    width: 400; height: 2000
    Column {
        spacing: 5
        ...
    }
}

Use another Rectangle and a Text object to define the field we want to display (name). No need to display ids or links

            Rectangle {
               width: 400
               height: 26
               radius: 6
               color: "lightblue"
               Text{ anchors.centerIn: parent
                     font.pointSize: 14
                     font.bold: true
                     text: expression.evaluate(" concat('   ',\"name\")") }
            }

Rectangle is a positional object
Text is an object that needs to be inside a positional object
To access fields in the database (here the .ods file, but can be a shapefile or a proper database) we use expression.evaluate(""), field name must be between double-quotes, as defined by normal QGIS relation syntax, and those double-quotes are escaped within the double-quotes of expression.evaluate.
concat() is used to add space to the left of name.

Note the use of radius and color to define the look of Rectangle. Also text characteristics are fully customisable.

Use an Image object to display the image field of town table:

            Image {
                width:400
                sourceSize.width: 400
                horizontalAlignment: Image.AlignLeft
                source: expression.evaluate(" concat('http://www.geoproc.com/be/qmlimg/', \"image\") ")
                MouseArea {
                    id: mouseArea1
                    anchors.fill: parent
                    hoverEnabled: true
                    onClicked: Qt.openUrlExternally( expression.evaluate(" \"link\" ") )
                }
            }

The source parameter (URL format) tells where the image is stored. Here a web address is used but URL can point to a local resource (use: file:///path/to/local/resources/ format). Even on Windows system the directory separator is /, not \. You need to adjust that url to your specs.
The MouseArea object is used to create a link so that the user can mouse-over and click the image to open more info about the town. In this case a web site giving information about the town itself.

Now we need to define how to display the one-to-many relation:

Give it a title with the use of Rectangle/Text objects:

            Rectangle {
               width: 400
               height: 26
               radius: 6
               color: "white"
               Text{ font.pointSize: 14; color:"blue"
                     font.underline: true
                     font.italic: true
                     text: "Painters" }
            }

Use a Repeater object to define a template for what to show:

            Repeater {
                ...
            }

Repeater needs a data source to repeat (i.e. a model). Here is all the fun to play with SQL-like syntax in order to define what information to extract from the database

            Repeater {
                model: expression.evaluate("string_to_array(relation_aggregate( 'paintings__IDC_paintings__id','concatenate',coalesce(\"author_Author\",'')||'ÿ'||coalesce(\"image\",'')||')ÿ'||coalesce(\"author_link\",''), ','))")
                ...
            }

What have we done here?
Well, we need to return a model, i.e. an object storing the results of a database query. Here it is an array (string_to_array(string, delimiter)) using QGIS expression syntax within an expression.evaluate function.

In order to work on joined tables we use relation_aggregate to return a string made of the fields we want to show
syntax: relation_aggregate(relation_name, operator, sql_definition). When operator is concatenate, return is a string with all matching records separated by comas
- relation_name is found by clicking (Figure 10), opening Relations and double-click the name of the relation (here PAINT) and copy its content (paintings__IDC_paintings__id)

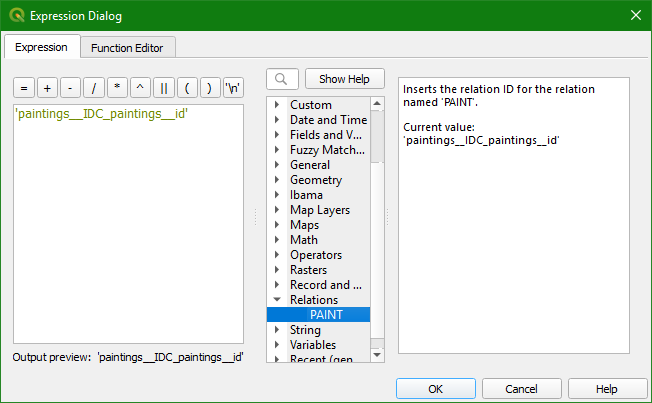

Figure 11: Relation's name: paintings__IDC_paintings__id

We use ÿ as a component separator to allow further processing
coalesce() is used to make sure no Null are returned
returned model has only one field per record. Access to the unique field of this type of model can be done with modelData object

Now, define template used to show relation fields:

             Repeater {
                model: expression.evaluate("string_to_array(relation_aggregate( 'paintings__IDC_paintings__id','concatenate',coalesce(\"author_Author\",'')||'ÿ'||coalesce(\"image\",'')||'ÿ'||coalesce(\"author_link\",''), ','))")
                Row {
                    spacing: 2
                    Image {
                        id: imgField
                        width: 98
                        sourceSize.width: 98
                        source: 'http://www.geoproc.com/be/qmlimg/' + modelData.toString().split("ÿ")[1]
                        MouseArea {
                            id: mouseAreaI
                            anchors.fill: parent
                            onClicked: Qt.openUrlExternally(modelData.toString().split("ÿ")[2] )
                        }
                    }
                    Rectangle {
                        id: linkField
                        width: 298; height:20; radius: 6
                        color: mouseAreaL.containsMouse ? "#ccccee" : "#eecccc"
                        Text{ font.weight:Font.ExtraLight; text: '   ' + modelData.toString().split("ÿ")[0] }
                        MouseArea {
                            id: mouseAreaL
                            anchors.fill: parent
                            hoverEnabled: true
                            onPressed: linkField.state = PRESSED
                            onReleased: linkField.state = RELEASED
                            onClicked: Qt.openUrlExternally(modelData.toString().split("ÿ")[2] )
                        }
                        states: [
                            State {
                                name: PRESSED
                                PropertyChanges { target: linkField; color: "lightgreen"}
                            },
                            State {
                                name: RELEASED
                                PropertyChanges { target: linkField; color: "#eecccc"}
                            }
                        ]
                        transitions: [
                            Transition {
                                from: PRESSED
                                to: RELEASED
                                ColorAnimation { target: linkField; duration: 1000}
                            },
                            Transition {
                                from: RELEASED
                                to: PRESSED
                                ColorAnimation { target: linkField; duration: 1000}
                            }
                        ]
                    }
                }

Well this is a bit more involved than needed, but it shows how to respond to user mouse activity over fields. States and transitions code taken from opengis.ch blog entry on QML
Javascript syntax is used to separate the returned string into its field components
Template uses a Row object to display an image of the painting to the left and the painter's name on the right. Both fields can be clicked and will open a web browser window displaying more information about the painter.

Just one more problem: the form is not scrollable, so it can happen that some information is inaccessible... To alleviate that just wrap everything within a Flickable object.

Final code is shown below:

import QtQuick 2.0

Flickable {
    id: theFlick
    width: 400; height: 800
    contentWidth: theRect.width; contentHeight: theRect.height
    clip: true

    Rectangle {
        width: 400; height: 2000
        Column {
            spacing: 5

            Rectangle {
               width: 400
               height: 26
               radius: 6
               color: "lightblue"
               Text{ anchors.centerIn: parent
                     font.pointSize: 14
                     font.bold: true
                     text: expression.evaluate(" concat('   ',\"name\")") }
            }
            Image {
                width:400
                sourceSize.width: 400
                horizontalAlignment: Image.AlignLeft
                source: expression.evaluate(" concat('http://www.geoproc.com/be/qmlimg/', \"image\") ")
                MouseArea {
                    id: mouseArea1
                    anchors.fill: parent
                    hoverEnabled: true
                    onClicked: Qt.openUrlExternally( expression.evaluate(" \"link\" ") )
                }
            }
            Rectangle {
               width: 400
               height: 26
               radius: 6
               color: "white"
               Text{ font.pointSize: 14; color:"blue"
                     font.underline: true
                     font.italic: true
                     text: "Painters" }
            }

             Repeater {
                model: expression.evaluate("string_to_array(relation_aggregate( 'paintings__IDC_paintings__id','concatenate',coalesce(\"author_Author\",'')||'ÿ'||coalesce(\"image\",'')||'ÿ'||coalesce(\"author_link\",''), ','))")
                Row {
                    spacing: 2
                    Image {
                        id: imgField
                        width: 98;
                        sourceSize.width: 98
                        source: 'http://www.geoproc.com/be/qmlimg/' + modelData.toString().split("ÿ")[1]
                        MouseArea {
                            id: mouseAreaI
                            anchors.fill: parent
                            onClicked: Qt.openUrlExternally(modelData.toString().split("ÿ")[2] )
                        }
                    }
                    Rectangle {
                        id: linkField
                        width: 298; height:20; radius: 6
                        color: mouseAreaL.containsMouse ? "#ccccee" : "#eecccc"
                        Text{ font.weight:Font.ExtraLight; text: '   ' + modelData.toString().split("ÿ")[0] }
                        MouseArea {
                            id: mouseAreaL
                            anchors.fill: parent
                            hoverEnabled: true
                            onPressed: linkField.state = PRESSED
                            onReleased: linkField.state = RELEASED
                            onClicked: Qt.openUrlExternally(modelData.toString().split("ÿ")[2] )
                        }
                        states: [
                            State {
                                name: PRESSED
                                PropertyChanges { target: linkField; color: "lightgreen"}
                            },
                            State {
                                name: RELEASED
                                PropertyChanges { target: linkField; color: "#eecccc"}
                            }
                        ]
                        transitions: [
                            Transition {
                                from: PRESSED
                                to: RELEASED
                                ColorAnimation { target: linkField; duration: 1000}
                            },
                            Transition {
                                from: RELEASED
                                to: PRESSED
                                ColorAnimation { target: linkField; duration: 1000}
                            }
                        ]
                    }
                }
            }
        }
    }

}

Copy-paste from your text editor into the text box and a sample of the form should display on the right. If nothing is displayed then there is a bug in the code and it needs to be checked!!

Figure 12: Testing the QML code

Note:

Warning: It seems that a qml form cannot be edited. If you plan to add new data from within QGIS you need to delete the QML form and design a more traditional, simple form.
In the example given here, the Flickable does not work!
Hovering over artist's name changes background colour

QML objects reference

5 - Conclusion

QML forms are a very powerful way to lighten up data presentation to users. With a bit of practice very pleasant results can be achieved.

And, it is not that difficult to learn QML!

Hopefully this short tutorial has shown you what can be done and gave you the incentive to investigate further.

Image references

Canaletto_DucalPalaceVenice.jpg: https://www.1st-art-gallery.com/...
ClaudeMonet_TwilightVenice.png: https://www.allposters.com/...
GuidoBorelli_IlGattoNeroAVenezia.png: https://guido-borelli.pixels.com/...
GuidoBorelli_StPaulDeVence.png: https://www.print-services.com/...
MarilynDunlap_StPaulDeVenceAndLavender.png: https://www.art.com/...
PierreAugusteRenoir_TheDogesPalaceVenice.jpg: https://chasingart.com/...
StPaulDeVence.jpg: https://www.alamy.com/...
Venice.jpg: https://www.shutterstock.com/...

Published date: 04 Aug 2019.
